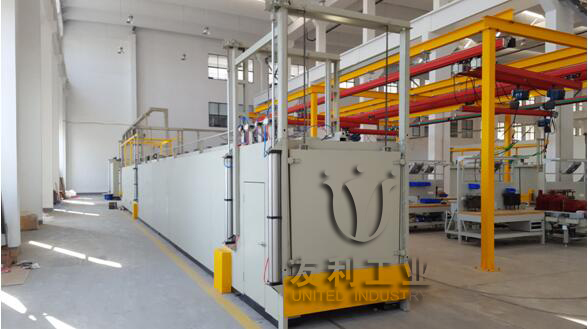

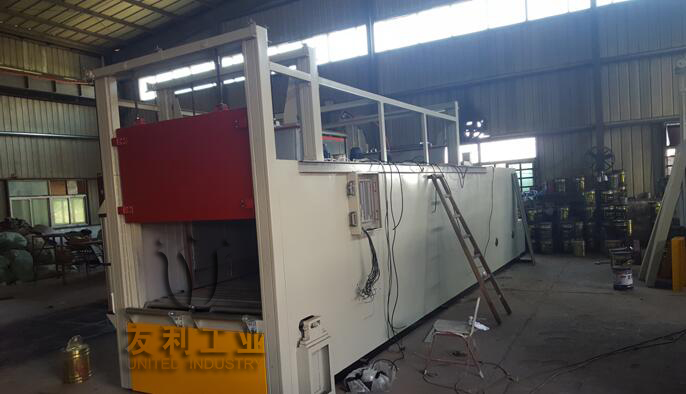

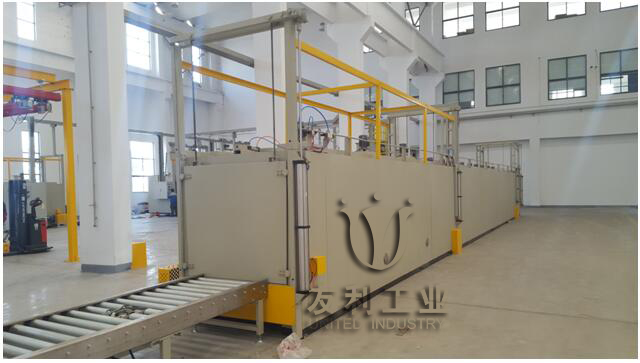

post curing tunnel furnace

post curing tunnel furnace

In order to meet the requirements of large batch and automatic production mode of mutual inductor, a number of fully automatic post curing tunnel furnaces have been developed in our company. Compared with the same products, this kind of product has the advantages of high drying automation, short drying cycle and less energy consumption per unit work piece. It is well received by customers.

Our UB series curing furnace has good temperature uniformity, various flexible air supply modes, mature and reliable control system and beautiful appearance. It has been widely applied in the national epoxy casting dry and non envelopment dry production enterprises.

Our company has a wide range of customers in the transformer manufacturing industry, and has accumulated rich experience. We can provide various heating methods, air supply modes and control systems for customers according to different products and processes. Make the customer's product achieve the best drying and curing effect.


More

Details

The performance characteristics.

1. The thermal insulation material adopts low thermal conductivity high quality insulation cotton, and the energy saving effect is obvious.

2. the program of intelligent controller, the P I D parameter self-tuning, solid state relay power adjustment, contactless continuous adjustment, automatic completion of the whole process of drying process, can meet the requirements of any curing curve, simple operation, reliable performance; electrical control components selection at home and abroad, the reliability of electric control part to achieve the optimal curing furnace;

3. By using optional paper recorder, printing record, paperless recorder or computer centralized control, we monitor the whole process and analyze the results of drying and curing.

4. According to the different placement of the baked products, the reasonable hot air circulation mode (top heating, vertical air supply, bottom heating horizontal air supply, side heating and vertical air supply) is adopted to make the temperature in the studio more uniform and the coil drying effect is better.

5. The ultra - temperature alarm system is set up, when the temperature is abnormal, it can cut off the heating power and send out the sound and light alarm.

6. The low voltage lighting system and the observation window can be selected to observe the solidifying condition of the workpiece at any time.

7. Laying track at the bottom, the different driving modes, such as manual drive, blunt rack drive and traction trolley drive, can be selected according to the different weight of the baked products.



UB-1

UB-2

UB-3

UB-4

UB-5

UB-6

UB-7

Studio mm

W*D*H

1200×1700

×1000

1500×1600

×1600

2000×2000

×2000

2000×3000

×2000

2000×350

0×2000

2200×4000

×2000

3000×5000

×3000

Temperature(℃)

200

200

200

200

200

200

200

Supply voltage(V)

3380

3380

3380

3380

3380

3380

3380

Power frequency (Hz)

50

50

50

50

50

50

50

Heating Ratekw

18

27

45

54

63

72

96

Temperature uniformity (%)

±2.5

±2.5

±2.5

±2.5

±2.5

±2.5

±2.5

Temperature fluctuation(℃)

±1

±1

±1

±1

±1

±1

±1
