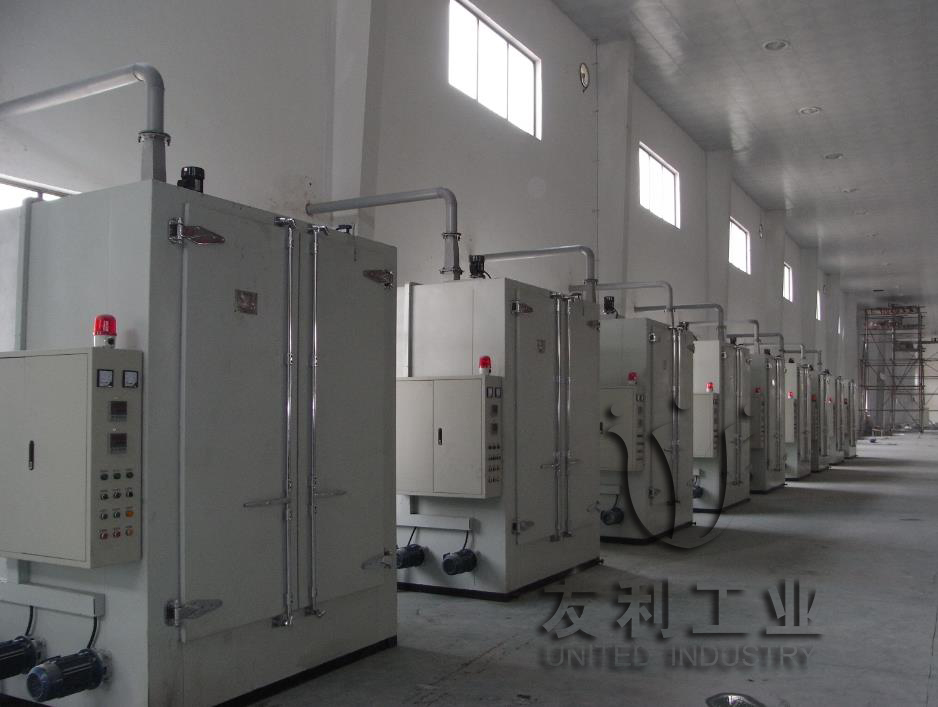

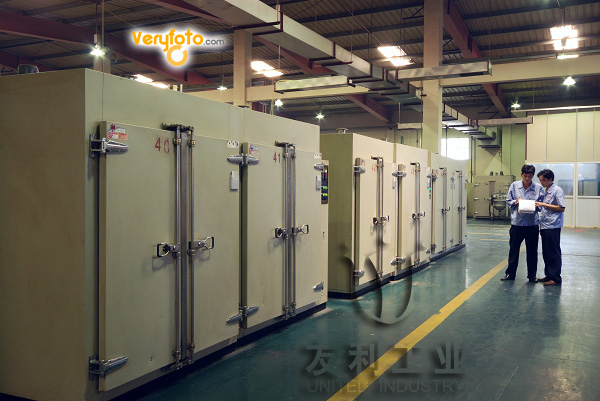

Insulator Drying Oven
UD series electric drying oven
The advanced hot air circulation system makes the temperature distribution in the studio evenly distributed.The low noise fan system creates a quiet working environment.The sealing electric heating tube is heated, the performance is stable and the life is long.
Details
The bottom is equipped with track and is equipped with a trolley for cutting workpiece or test piece. It has high working efficiency.The intake and exhaust device can adjust the air exchange rate of the studio.Independent console, can be the nearest control, can also be centralized to the control room in a unified control;Import high precision intelligent program instrument temperature control, P.I.D parameter self-tuning, solid state relay power regulation, can presuppose multiple segment program. The intelligent temperature control instrument is sensitive and reliable. The recorder records the whole process temperature curve.The overtemperature protection device can send out the sound and light alarm signal and cut off the heating power supply to protect the safety of the equipment and the workpiece.The unique design of the pressure relief door can reduce the loss in accident.
data sheet
|
model |
UD-1 |
UD-2 |
UD-3 |
UD-4 |
UD-5 |
UD-6 |
UD-7 |
|
Studio （W×D×H）（mm） |
850×800×1000 |
1200×1200×1200 |
1300×1200×1500 |
2000×1800×1500 |
3000×2000×1500 |
1800×3000×1500 |
2000×3000×1500 |
|
Size（mm） |
1700×1200×1400 |
2100×1600×1900 |
2200×1600×2100 |
2900×2200×2100 |
3900×2400×2100 |
2700×3400×2100 |
2900×3400×2100 |
|
Working Temperature（℃） |
～250 |
～250 |
～250 |
～250 |
～250 |
～250 |
～250 |
|
Voltage（V） |
3-380 |
3-380 |
3-380 |
3-380 |
3-380 |
3-380 |
3-380 |
|
Power frequency （Hz） |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Heating Rate（kw） |
10.8 |
15 |
22.5 |
36 |
45 |
45 |
45 |
|
Temperature uniformity （%） |
±2.5 |
±2.5 |
±2.5 |
±2.5 |
±2.5 |
±2.5 |
±2.5 |
|
Temperature fluctuation （℃） |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
|
load（t） |
|
1.5 |
2 |
2.5 |
3.5 |
3.5 |
4 |
|
weight（T） |
0.45 |
1.0 |
1.5 |
2.5 |
3.55 |
3.55 |
3.75 |
